Motic Easy Scan Pro 6

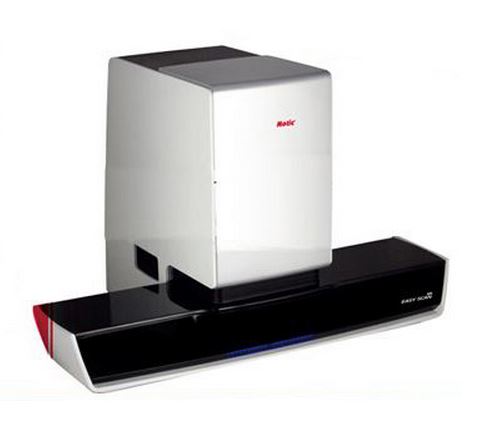

EASYSCAN PRO 6 Slide Scanner
Motic Scanners have some of the best service track records of any manufacturer! They are designed to work without interruption.
How to View our Slides: Login: Demo Password: Motic773 Left mouse click on any slide. The image will open in a new page. Use your left mouse button and mouse wheel to zoom, pan and scroll. In the upper left hand corner of the opened image you will see an icon of three horizontal lines. Click that, then find three different horizontal lines  to change contrast, brightness and gamma. Click the X in the upper right corner to close image and change slides.

INEXPENSIVELY SCAN WHOLE 1×3″ or 2×3″ PATHOLOGY SLIDES IN MINUTES. Add FS-LIVE Software for REAL-TIME INTERACTIVE LIVE TELEPATHOLOGY!

EASYSCAN PRO 6 and PRO 6 FS-LIVE

As the lowest cost, high performance six (6) whole slide imager (WSI) scanner on the market, the Motic EASYSCAN PRO 6 slide scanner offers incredibly simple to use software for the most demanding whole slide applications. Capable of high resolution scans for secondary diagnosis this is the perfect scanner for instant consultation. The EASYSCAN PRO 6 FS-Live is perfect for realtime viewing of H&E’s, cytology sections, bone marrows, frozen sections, fine needle aspirations,  or any histological specimen on a 1 x 3 inch glass slide. (2 x 3  inch glass slide holder also available.) Capable of 10x, 20x and 40x scans. If you have ever thought about purchasing your OWN slide scanner the Motic EASYSCAN PRO 6 or PRO 6 FS-LIVE is worth considering. Whether you are in private practice, in a hospital setting or research area this is only scanner you need!

Hardware Features:

Six (6) slide capacity trays, 5 included

Complete scan time is 100 seconds (40x, 15mm x 15mm area) and 60 seconds (20x, 15mm x 15 mm area)

High resolution Plan Apo 20x /0.75 objective lens produce ultra-clear, color correct images (optional 4x and 10x with FS-Live)

Three (3) place motorized nosepiece capable of adding S-Plan Apo 4x or Plan Apo 40x objectives.

Three (3) Camera System 2/3 “CCD, 5MP or CMOS, 12M Pixel ; Resolution: 2448 x 2048, 15 fps or 3000 x 4000, 15 fps

3.45 X 3.45μm / pixel, USB3 connectivity ( faster and clearer )

Control Systems XYZ auto, repeat positioning accuracy ≤ 1um

Optical system CCIS, 10W LED illumination, working time > 30,000 hours

Actual Image Resolution, 20x: 0.5μm / pixel, 40x: 0.25μm / pixel

Slide Tolerance: Tolerances – Length: 76 (+0/-1) Width: 26 (+0-1) Thickness: +0.1/-0.2

Software Features:

FAST SCAN TIMES: 15 x 15 mm  full tissue area, 20x, 60 seconds and 40x, 100 seconds

REALTIME AUTOFOCUS: Time consuming pre-mapping focus points is no longer necessary

WALK AWAY ONE-BUTTON SCANNING: Incredible time savings

CAPTURES PREVIEW IMAGE IN SECONDS: Not minutes, high definition (HD) overview display

Z STACK CAPTURE: Allow rolling focus of images, simulates microscope true focus

EXTENDED DEPTH OF FIELD:  EDF image creation, publication quality images and prints

BAR CODE READER: Helps keep accurate record keeping

MULTIPLE IMAGE DISPLAY: View images sides by side for direct comparison

ANNOTATION, MEASURE, IMAGE TAGS: Simple, easy to add and undo

CONVERT SLIDES OR SAVE ORIGINALLY  AS SVS, MDS, JPEG, JPEG2000 format:  Whole slide or region of interest (ROI) conversion for use with 3rd party software packages at any magnification

OPTIONAL FS-LIVE REMOTE CONTROL: View images in real-time anywhere! Change lenses, focus, pan and scroll all remotely for tele-consultation, 4x Plan Achromat and 10x Plan Apochromat objectives included

Motic EASYSCAN PRO 6 pathology slide scanning for digital applications:

More:

  1. Fully automatic and manual region of interest (ROI) modes, high-precision (X-Y-Z repeat positioning accuracy ≤1um), stable and reliable.
  2. High resolution digital imaging device scans 10mm x 10mm samples in under a minute at 20X.
  3. Multi-slide auto loading device automatically scans in unattended scanning mode, reducing the amount of labor the pathologist or technician has to provide, improving work efficiency.
  4. Standard, high-precision, multi-function or 3D scanning software modes with multiple ROI’s allow different scanning needs.
  5. Image-Processing allows zoom, pan and scroll, annotating, measurements, application of grids and masks, synchronized multiple side by side image comparison, image rotation, adjustment and enhancing.
  6. Create movies for teaching and education using the built-in AVI audio and video recorder. Post videos to YouTube for sharing your best cases
  7. Inexpensive, low maintenance cost and quick return of investment make it a scanner worth considering!
Motic Easy Scan Pro

Motic EASYSCAN pathology slide scanning for tele-consultation:

Additional Features:

  1. Tele-consultation system, new LIVE MODE allows remote hospital access to the digital sections and associated clinical data, all data is automatically uploaded through the consultation platform. After login, digital slides can be seen from browser to browser, allowing secondary discussion. Additional users can use iPad, iPhone and other mobile devices for mobile consultation.
  2. Pathology quality control center for primary hospital can upload digital slides and assure quality control through statistics.
  3. Use the remote control software ‘Motic Tele’, to achieve rapid scans for review; remote real-time viewing. Remote observation at different Z planes of the sample are also possible.
  4. Windows 10, 4K All-in-One computer workstation increases field of view over four times that of conventional HD display.
  5. Optional 2×3″ slide holder available
easyscan-2

Easy Scan Pro Main Menu - It's so EASY!

Overview01

Easy Scan Pro DSAssistant Main Menu - It's so EASY!

Pap Smear

Easy Scan Pro DSAssistant Thumbnail Views - It's so EASY!

DSAssistant

Easy Scan Pro DSAssitant Image Comparison - It's so EASY!

Capture21

Easy Scan Pro Optional 4K display increases your field of view over 4 times! - It's so EASY!

what-you-see-4k

INCLUDED Extended Depth of Field (EDF) software allows a series of Z stack images to be transformed into single FOCUSED image with unprecedented clarity!

Standard Image verses Extended Depth of Field Image - It's so EASY!

Comparison2

Send us your slides to scan and we will upload the resulting images on our server for your review. Or better yet, call us at 281-579-0342 to arrange a Web based ‘LIVE” demonstration on the EASY SCAN PRO 6 digital pathology whole slide scanner.

All data and pricing subject to change without notice . . .

All Motic EASYSCAN PRO 6 digital pathology slide scanners are for research purposes ONLY!

Worldwide hundreds have been sold and are currently in use. Considered one of the easiest to use slide scanners on the market today.
