Labomed Luxeo 4D Biological Stereomicroscope
Luxeo 4D: The New Teachers Pet

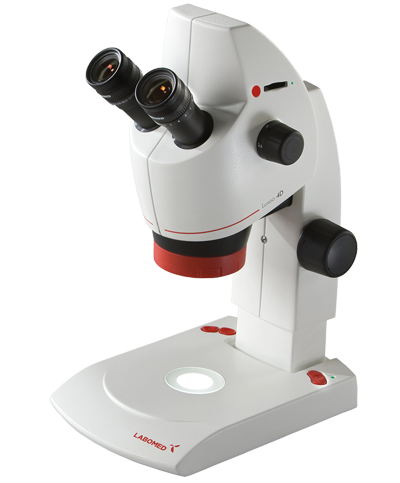

Labomed Luxeo 4D Stereomicroscope
The Labomed Luxeo 4D reflects high performance engineering in every detail, demonstrating yet again, Labomed’s unwavering focus on delivering superb value. With a super bright and white light emitting diode (LED) illumination system, superb optics, and a single-cast durable construction, and a superlative 5 Megapixel hi-definition built-in camera, virtually all educational, documentation, and even some industrial inspection requirements are met with the Labomed Luxeo 4D
Speak with one of our specialists today to see if the Luxeo 4D is right for you!
(281) 579-0342
A +/- 30° angle LED ringlight allows users to reduce surface glare from reflective topographies for brilliant LED Oblique Illumination. Bright LED transmitted illumination is also achieved with a 3-LED glow screen. Continuous Intensity control is managed through a control dial.
A built-in 5 Megapixel camera offers hi-definition 1080p live video feed (HDMI), digital interface through computer (USB 2.0) with PixelPro capture analysis software, and an onboard secure digital (SD) card slot with capture button.
Hi-precision PLAN optics and superior coatings ensure accurate color reproduction, excellent depth of focus, and high definition. With a truly white light, images appear as they should. A range of lockable eyepieces ensure both security as well as interchangeability.
Smooth focus control and a fluid 4.4:1 Greenough zoom system guarantee stress free operation with minimal ware and tare to gears, all of which are made of high-strength steels, mounts, and materials.
Package Contents
– Power Cable (6ft)
– Nylon Dust Cover & Cleaning Cloth
– PixelPro Image Capture Software (Windows XP/Vista/7 Compatible)
– USB 2.0 Cable (2ft)
– HDMI Cable (6ft)
– Styrofoam Casing
Accessories (Optional)
– Pointers & Micrometer Reticules
– Magnification Augmenting Eyepieces
– Polarizing Kit
– 1.5x Auxiliary Objective
Warranty Information
– 5 Year Parts
– 1 Year Electronics
– 2 Year Camera
Speak with one of our specialists today to see if the Luxeo 4D is right for you!
(281) 579-0342
- Optical System – Greenough
- Magnification – 4.4:1 Zoom Ratio
- Eyepieces – Widefield 10x/18mm (Interchangeable)
- Diopter Correction – + / – 5 diopters
- Viewing Body – Integrated Binocular, 45º, 52-74mm dioptric adjustment
- Working Distance – 100 mm
- Magnification Range – 8x to 35x Continuous
- Object Field Diameter – 6.6 to 28.5 mm
- Eye Guards – Rubber, Retractable
- Illumination Control – Incident / Transmitted (“Oblique” Settings) / Combined illumination control buttons with rheostat dial for light intensity control
- Incident Light – + / – 30º Oblique illumination and variable intensity control dial
- Incident Light Method – Maximum intensity (10 LEDs), front angled incident light (5 LEDs), rear angled incident light 5 (LEDs)
- Transmitted Light – 3 LEDs super bright glow screen, low heat emission
- LED Specifications – Approx 25,000 hours, Homogenous daylight (6500ºK), free of UV and IR emmissions
- Digital Interface – 5.0 Megapixel CMOS camera (1/2.5″ sensor) with digital (USB 2.0), video (HDMI), and secure digital (SD) card interface with on-board capture/record button.
- Power Supply – Universal 100V – 240V, 50/60Hz integrated power supply with voltage flux stabilizer
