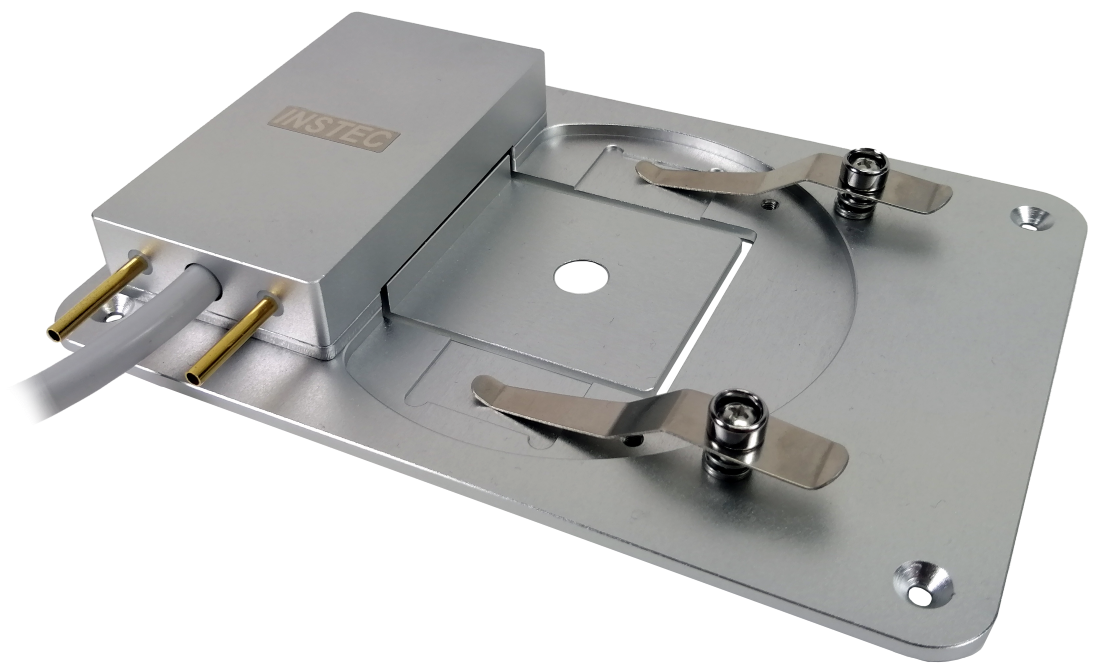

TS102S

  • Simple stage for quick experiments with upright or inverted microscopes

  • -25°C to 120°C with Peltier heating and cooling

  • Open surface with clamps to fit standard 25 mm × 75 mm microscope slides

  • Complete with mk2000 controller and C100W water bath

Description

The TS102S is a Thermo Electric Cooler (Peltier) based heating stage that can cool down to -25°C without using liquid nitrogen or a circulation chiller. This is very convenient for performing short duration experiments at cold temperatures. It also simplifies the system set up and reduces operating costs. With an open surface and clamps to fit the standard 25mm x 75mm microscope slides, this Peltier stage is as quick and easy as things can get for experiments.

Thermal Features

Temperature Control

mK2000 with programmable precision switching PID method

Thermal Block

Black anodized aluminum

Temperature Minimum

-25°C (with ice water bath)

Temperature Maximum

90°C

Temperature Sensor

100 Ω Platinum RTD

Maximum Heating Rate

+30°C per minute at 37°C

Maximum Cooling Rate

-25°C per minute at 37°C

Minimum Heating and Cooling Rate

±0.01°C per minute

Temperature Resolution

0.01°C

Temperature Stability

±0.05°C

Power Supply

Universal power input

Software

Windows software to record and export temperature-time data

Optical Features

Optical Access

Reflection and transmission capability

Minimum Objective Working Distance

0 mm

Minimum Condenser Working Distance

3 mm

Transmission Aperture

10 mm diameter, (other  diameter optional)

Structural Features

Sample Area

45 mm x 45 mm

Sample Access

Open chamber with sample clamps

Frame Cooling

Integrated frame cooling

Mounting

Horizontal

Frame Dimensions

160 mm x 150 mm x 20 mm

Weight

500g
