The New Moticam
The Next Generation

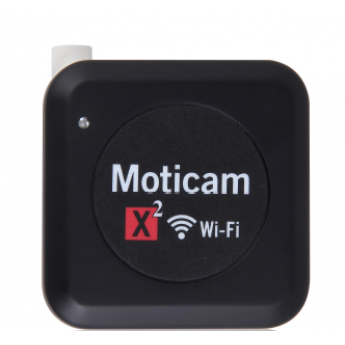

Moticam series, a digital camera for microscope, is a digital microscopy camera that captures the perfect image through the MI Devices interface. Transfer the image to the Motic Images Plus application software and you are free to take measurements, make annotations, reports, comparisons and much more. Moticam also gives you the luxury of connecting the camera to TV monitor, projector and/or computer to easily turn your images into knowledge!
Moticam’s “all-in-one-box” is packaged with camera, accessories and Motic Image Plus 2.0, that allows immediate access to examine the full functionality of the imaging camera viewing specimens, capturing image and image sharing.
- Sensor Type: CMOS
- Sensor Resolution: 2.0MP
- WiFi Resolution: 1280×1024 pixels
- Optical Calculation: 1/3”
- Focusable Lens: 12mm
- Calibration Slide
- Macro Tube
- Power Supply: Through provided switching power adapter
- Viewing Devices:
WiFi enabled PC or Laptop: Motic Images Plus for PC
Tablet or Phone Devices: Freely downloadable App MotiConnect
Universal Viewer: Almost any HTML 5 supported Web browser
- Live Resolution: 1.3 Mega pixels
- Sensor Type: CMOS
- Optical Calculation 1/3”
- Focusable Lens: 12mm
- Software Included: Motic Images Plus for PC and Mac
- Others: Direct Show, TWAIN and Media Cybernetics Image Pro
- Plus 7 Driver compatibility
- Live Resolution: 2.0 Mega pixels
- Sensor Type: CMOS
- Optical Calculation 1/3”
- Focusable Lens: 12mm
- Software Included: Motic Images Plus for PC and Mac
- Others: Direct Show, TWAIN and Media Cybernetics Image
- Pro Plus 7 Driver compatibility
- Attachable digital C-mount camera
- Sensor: CMOS
- Data Transfer: USB 3.0
- Live resolution: 3.0MP (2048×1536)
- Optical calculation: 1/2″
- Output: MiniUSB
- Focusable lens: 16mm
- 2 variable diameter eyepiece adapters
- Macrotube for specimens observation
- Motic Images Plus 2.0 for PC and MAC
- Motic 4-dot calibration slide
- Operation system: Windows XP and higher, Mac OSX
- Attachable digital C-mount camera
- Sensor: CMOS
- Data Transfer: USB 3.0
- Live resolution: 5.0MP (2592×1944)
- Optical calculation: 1/2,5″
- Output: MiniUSB
- Focusable lens: 12mm
- 2 variable diameter eyepiece adapters
- Macrotube for specimens observation
- Motic Images Plus 2.0 for PC and MAC
- Motic 4-dot calibration slide
- Operation system: Windows XP and higher, Mac OSX

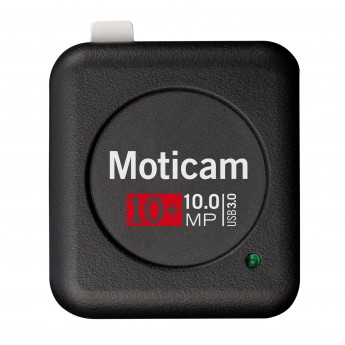

- Attachable digital C-mount camera
- Sensor: CMOS
- Data Transfer: USB 3.0
- Live resolution: 10.0MP (3664×2748)
- Optical calculation: 1/2,5″
- Output: MiniUSB
- Focusable lens: 12mm
- 2 variable diameter eyepiece adapters
- Macrotube for specimens observation
- Motic Images Plus 3.0 for PC and MAC OSX
- Motic 4-dot calibration slide
- Operation system: Windows XP and higher, Mac OSX
- Sensor Type: CMOS
- Optical: 1/2.8″
- Active Pixels: 1920 x 1080
- Imaging Area: 8.5mm x 7.3mm
- Scan Mode: Progressive
- Shutter Type: Rolling Shutter
- Maximum SNR: 41dB
- D/R: 69dB
- SD Card Slot
- Interface: USB 2.0 and HDMI
- Operating Requirements: Windows 7 or higher, OSX and 250MB free HD space
As an affordable multi-tasking microscopy camera, the Moticam 580 is in a class of its own. This camera does not require a computer for standard operation once it has been setup on a microscope. Images can be captured directly onto an SD card at 5.0MP resolution. Connecting it with a USB cable to a computer allows this camera to be used like any other Moticam with the supplied software. The 580’s true versatility is underlined by its capability to display live images at 1080 resolution through the HDMI output port.
Whether used in an Educational, Industrial or Clinical area, the Moticam 580 is the Jack of all Trades in our new Moticam lineup.
• Sensor Type: CMOS
• Sensor Resolution: 5.0MP
• Optical Calculation: 1/2.5”
• Output Possibilities: HDMI, Analog Video, USB, SD Card
• Recording Possibilities: 1080p Video and 5.0MP onto SD Card • Remote Control included
• Fits standard Motic BA210, BA310, BA410 models
For other models please contact us!
• Software Included: Motic Images Plus for PC and Mac
The Moticam 580INT is a fully-integrated documentation station specifically designed to enhance our BA line of profes- sional microscopes. Whether you are using a BA210, 310 or a 410, you can easily attach the Moticam 580INT system onto the microscope. With a 10” TFT monitor built onto the camera’s arm, this solution enables the microscope’s image to be shared on the screen in real time. Capture 5MP still or 1080p video images onto an SD card by using the supplied Remote Control or by using the capture button on the camera. A USB as well as a regular A/V port are still provided so that this system can be connected to a computer running Motic Images Plus software or an older analog monitor. By using the 580INT’s HDMI connec- tion, you choose to connect the camera to the built-in monitor or a larger HDMI screen of your choice.
Great for Clinics as well as Veterinarian Laboratories, upgrade your BA system with the Moticam 580 to a fully integrated documentation station.
