Labomed iVu S5 CMOS Camera
Digital, Video, and Secure Digital Capture…All In One

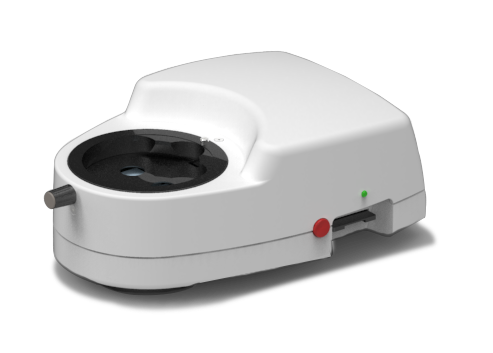

Labomed iVu S5 Camera
The iVu S5 is a medical grade digital camera that can provide super resolution video (1080p) and digital signals out, simultaneously. With an on-board SD Card slot, doctors need not be tethered to their computers to capture images for patient documentation. Consistent with Labomed’s modular design philosophy, this camera will integrate seamlessly with your surgical microscope.
Speak with one of our specialists today to see if the iVu S5 is right for you!
(281) 579-0342
5 Megapixel HD (1080p) resolution with 30 frames per second (fps), high-fidelity in image rendering and sharp image contrast. Digital and SD Card capturing are a standard with the iVu S5. Optional foot pedal make hands free capture easy. This system does it all!
PixelPro Image Capture Software makes still and video capturing simple. A modern and easy to navigate user interface allows users of all computer skills to quickly identify critical control functions, and to archive, measure and annotate images.
Package Contents
– PixelPro Image Capture Software
– USB 2.0 Cable (3ft)
Warranty Information
– 2 Year Camera
Speak with one of our specialists today to see if the iVu S5 is right for you!
(281) 579-0342
- Sensor 1/2.5” 5.0 Megapixel Color CMOS
- Active area – 5.70mm x 4.28mm
- Sensor resolution – 2592 x 1944 pixels
- Pixel Size – 2.2µm x 2.2µm
- A/D conversion – 12 Bit RGB
- Pixel clock – 48 MHz
- Dynamic range – 68 dB (measured at 10 ms exposure)
- Max. exposure – 3 seconds (Automatic Exp, WB, BL)
- Frame rate (image size) – 30fps (1080p)
- Image resolution (Standard Binning) – 2592 x 1944, 1280 x 720
- Interface – USB 2.0, HDMI, Secure Digital (SD) Card
- Optical connection – C-Mount
- Voltage supply – 5V/ 2 Amp (via USB 2.0 connector, optional external power adapter)
- Power consumption – approx. 1.8W
- Power indication – Green LED indicating power on and ready for capture
- SD Card Slot – Accepts SD and SDHC (High Capacity) cards
- Ambient conditions – Temperature: -30˚C… +70˚C, Humidity: 5%… 80%, not condensing
- Dimensions (LxWxH) – 145mm x 93mm x 123mm
- Weight – 600g
- Capture software – PixelPro
- Computer Requirments – PC: Microsoft Windows® XP/ Vista/ 7 OS, 3 Ghz CPU, 2GB RAM, USB 2.0
