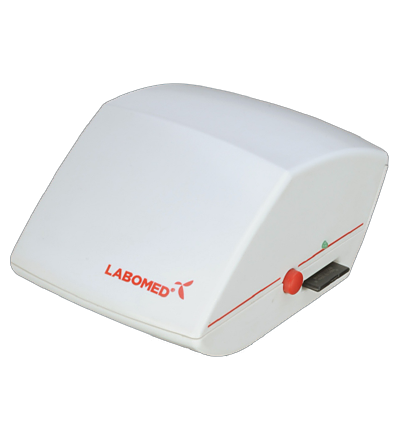

Labomed iVu 5100 CMOS Camera
Digital, Video, and Secure Digital Capture…All In One
Labomed iVu 5100 Camera
Call 281- 579-0342 for info
The super resolution iVu 5100 is a 5 Megapixel hi-defintion CMOS solution that boasts one of the fastest frame rates in its class, superb contrast, and unparalleled accuracy in color reproduction. This digital solution offers HD video streaming, digital, and an SD card interface in one highly affordable package. Total vertical integration of camera development at Labomed means better image quality, easy to navigate software, and better end-to-end software and driver support.
Speak with one of our specialists today to see if the iVu 5100 is right for you!
(281) 579-0342
5 Megapixel HD resolution with 30 frames per second (fps), high-fidelity in image rendering and sharp image contrast. Users can stream live video, capture images and videos using PixelPro software, and capture images to an SD card. This system does it all!
PixelPro Image Capture Software makes still and video capturing simple. A modern and easy to navigate user interface allows users of all computer skills to quickly identify critical control functions, and to archive, measure and annotate images with complete ease.
Package Contents
– PixelPro Image Capture Software
– USB 2.0 Cable (2ft)
– HDMI Cable (6ft)
Warranty Information
– 2 Year Camera
Speak with one of our specialists today to see if the iVu 5100 is right for you!
(281) 579-0342
- Sensor – 1/2.5” 5.0 Megapixel Color CMOS
- Active area – 5.70mm x 4.28mm
- Sensor resolution – 2592 x 1944 pixels
- Pixel Size – 2.2µm x 2.2µm
- A/D conversion – 12 Bit RGB
- Pixel clock – 48 MHz
- Dynamic range – 68 dB (measured at 10 ms exposure)
- Max. exposure – 3 seconds (Automatic Exp, WB, BL)
- Frame rate (image size) – 30fps (1080p)
- Image resolution (Standard Binning) – 2592 x 1944, 1280 x 720
- Interface – USB 2.0, HDMI, Secure Digital (SD) Card
- Optical connection – C-Mount
- Voltage supply – 5V/ 2 Amp (via USB 2.0 connector, optional external power adapter)
- Power consumption – approx. 1.8W
- Power indication – Green LED indicating power on and ready for capture
- SD Card Slot – Accepts SD and SDHC (High Capacity) cards
- Ambient conditions – Temperature: -30˚C… +70˚C, Humidity: 5%… 80%, not condensing
- Dimensions (LxWxH) – 145mm x 93mm x 123mm
- Weight – 600g
- Capture software – PixelPro
- Computer Requirments – PC: Microsoft Windows® XP/ Vista/ 7 OS, 3 Ghz CPU, 2GB RAM, USB 2.0
