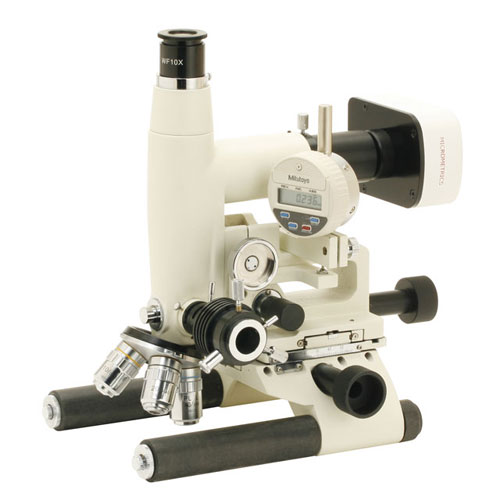

Unitron RMM2 Metallurgical Microscope

In Stock

The Unitron RMM2 Rollscope Microscope is a portable metallurgical-materials microscope for non-destructive or destructive microstructural analysis, measuring and photography of inaccessible or large objects that cannot be placed on the stage of an ordinary microscope.

Common Uses

Unique roller feet design permits easy movement over large flat or curved surfaces for inspection
Built-in photo port for simple and easy adaptation for digital imaging
Portable with battery operation and hard sided aluminum carry case for field operation
Precise three-dimensional measuring capability
Heavy duty stand designed and built to withstand years of use

Key Features

Aviation – to inspect structural integrity of parts and components
Printing – measurement of Gravure cells and Anilox rolls
Field metallography
Ship hull and press vessel examination
Rolled materials inspection
On-site failure analysis

Speak with one of our specialists today to see if the RMM2 is right for you!

(281) 579-0342

Unitron Z10 Zoom Series

Standard Specifications

Plan achromat 5x, 10x, 20x, and 50x objectives
Brightfield observation
Rack and Pinion coarse focus 60mm vertical travel with precise micrometer screw fine focus mechanism
WF 10x eyepiece with built-in diopter adjuster, 22mm field of view and 10mm/100 division crossline reticle
Quadruple revolving nosepiece
Rack and Pinion controls for graduated movement; Stand will move 40mm (X) and 50mm (Y)
Variable 6 volt 20 watt Koehler type vertical halogen illuminator with field diaphragm for both AC and DC operation; built in filter slots
Green and yellow filters
Physical weight: 9lbs.
Dimensions (W/D/H): 9″ x 11″ x 10″
Shipping weight and dimensions with aluminum hard sided carry case (W/D/H): 28lbs.; 21″ x 14″ x 16″

Optional Accessories

40x, 60x and 80x Plan Achromat objectives
Digital cameras with measurement and materials software
Digital still cameras, analog color and black and white c-mount cameras
Video c-mount adapters with 0.5X, 0.67X and 1X magnifications
Reticles: grain size, crossline, grid, metric, inch, austenite, and custom patterns
Stage micrometers in inch or metric rulings with NIST traceability
Filters: neutral density 24 mm in mount; polarizing in mount with analyzer
