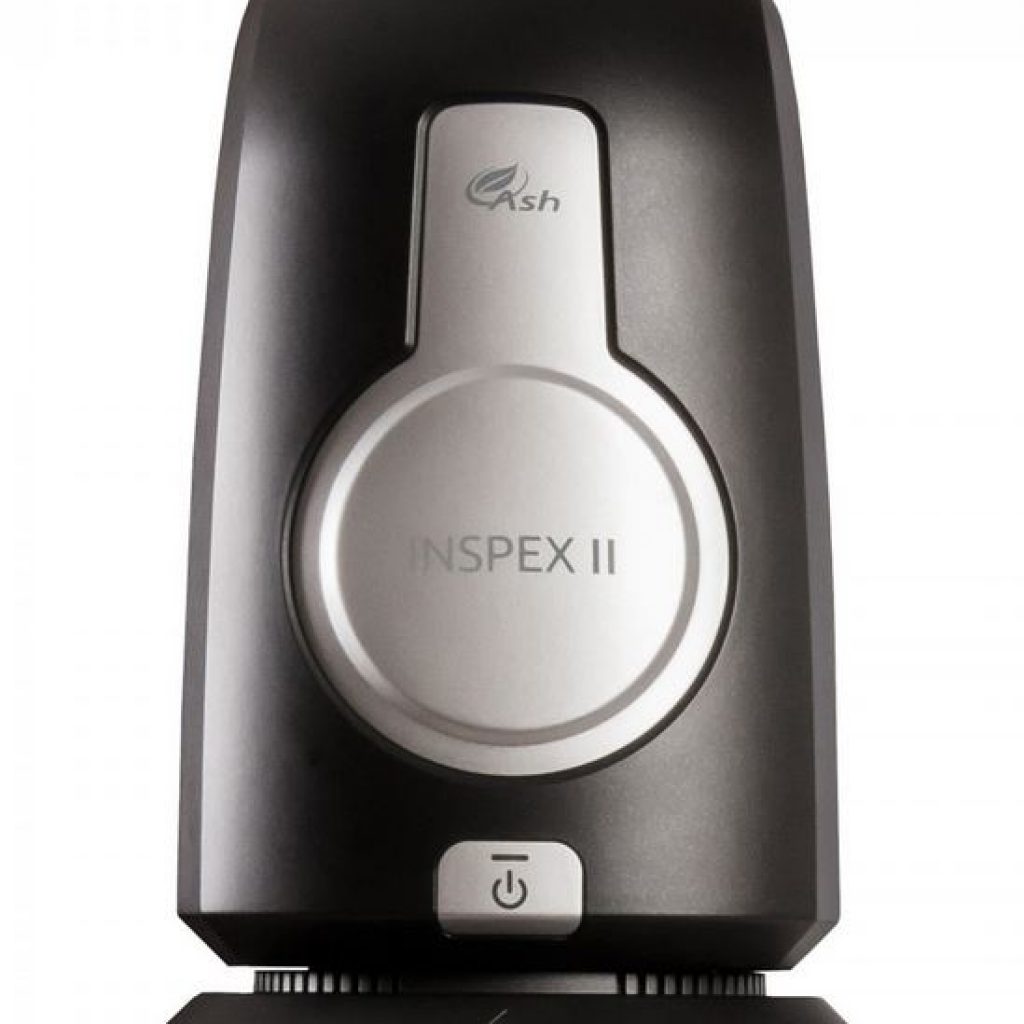

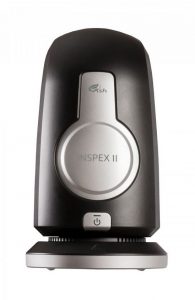

Unitron OMNI Core INSPEX II

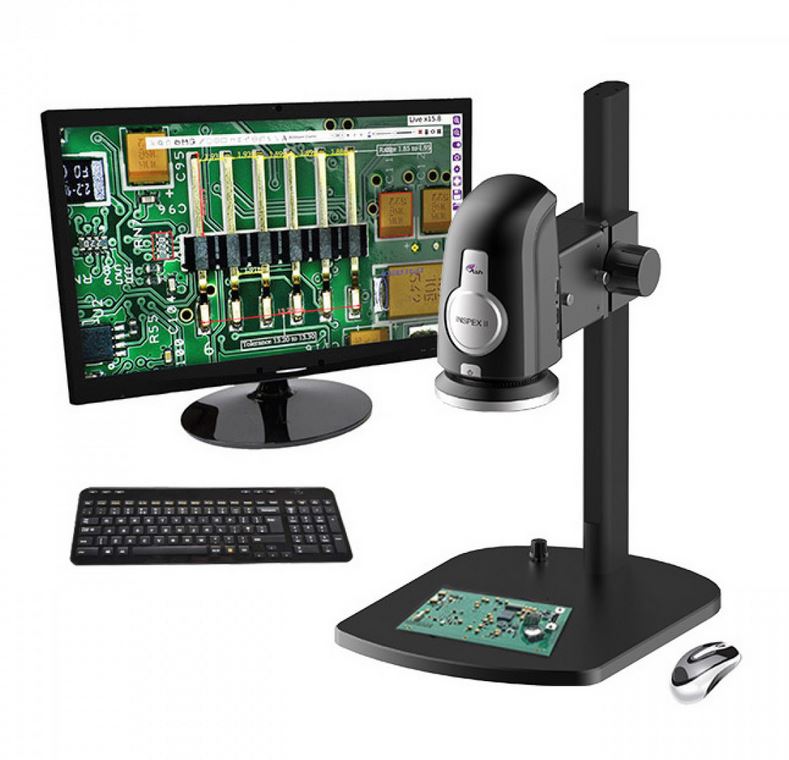

The new INSPEX II Digital Imaging System is an ergonomic, fully integrated full HD (1080p) digital microscope and measurement system that operates without a PC.
The GUI (Graphical User Interface) provides intuitive and efficient operation and control of the INSPEX II’s full application suite with only a mouse (included) and monitor (not included).
The INSPEX II’s platform has a powerful image processing and control engine that delivers superb full HD live video image quality at 60 frames per second enabling it to be used as a solution in a broad range of quality control, testing, rework, assembly, inspection and documentation tasks across many industries.
INCREASED PRODUCTIVITY:

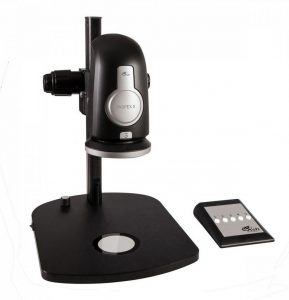

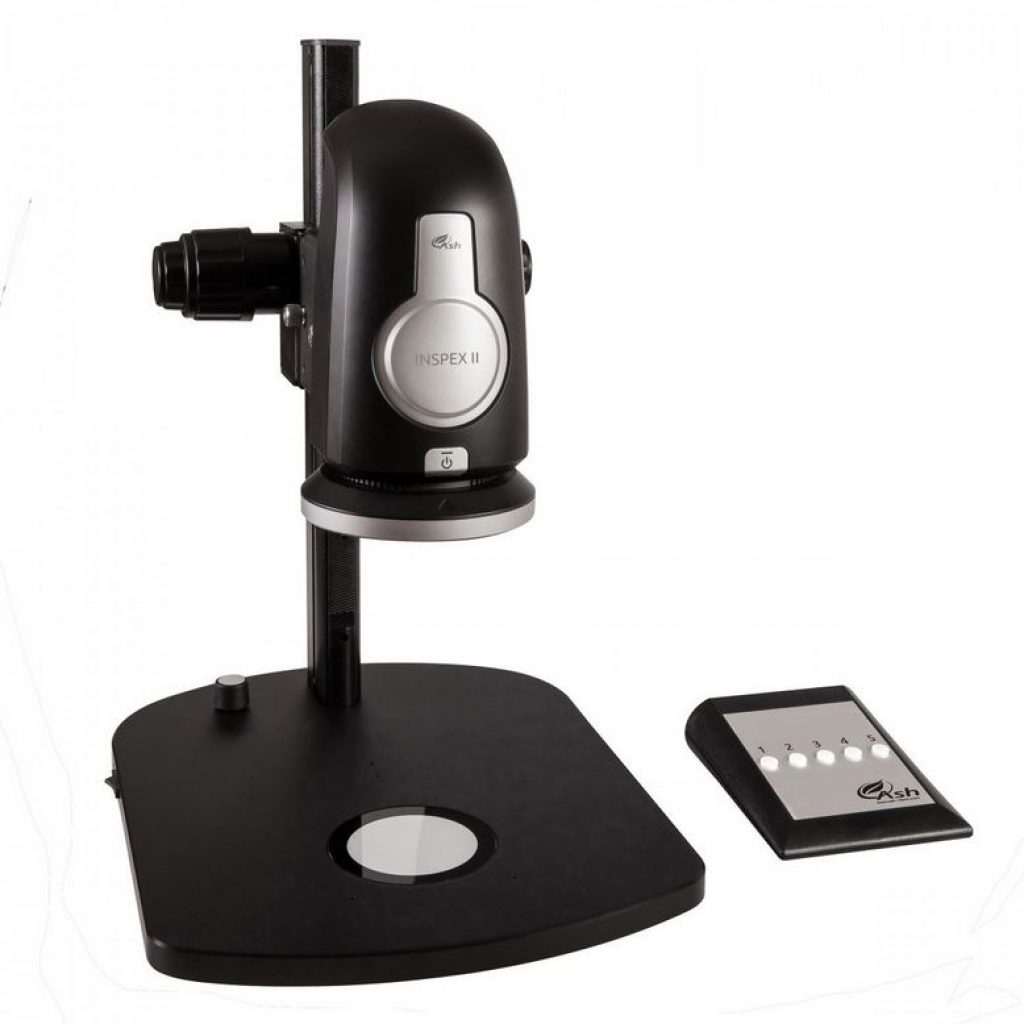

The intuitive software interface simplifies operation and controls increasing productivity and efficiency. AshCalTM calibration technology tracks and adjusts to zoom changes — no need for time-consuming zoom change re-calibrations. With the on-screen or optional keypad preset buttons, users have quick access to pre-configured, part-specific system settings.
QUALITY ASSURANCE:
User privileges offer control of system-related operations to ensure standardized inspection. Rapidly check parts against customized overlays with tolerance limits.
PRACTICAL FUNCTIONALITY:
Simple, one click Auto Focus with on-screen indicator makes image capture a breeze. Image stamping with time, date, user and magnification level for traceability throughout your inspection process. Other features include on-screen pre-set mode, 2-D line
measurement, and on-screen overlays.
The INSPEX II’s cable-free interchangeable illumination ensures shadow-free illumination, glare reduction and can be directly controlled via the on-board software.
Speak with one of our specialists today to see if the Unitron OMNI Core is right for you!
(281) 579-0342
Standard Specifications
- 1080p Digital inspection station with 5D lens
- 200mm working distance (with 5D lens, included)
- Magnification range: 2.2x – 132x (on 24″ monitor)
- Maximum magnification: 66x optical, 132.2x digital
- Camera resolution: 1920 x 1080, 60fps

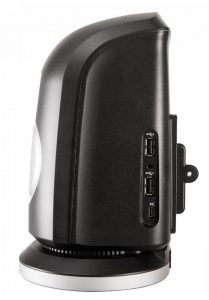

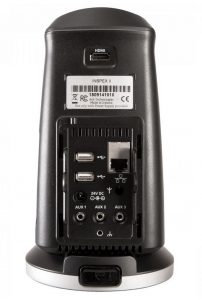

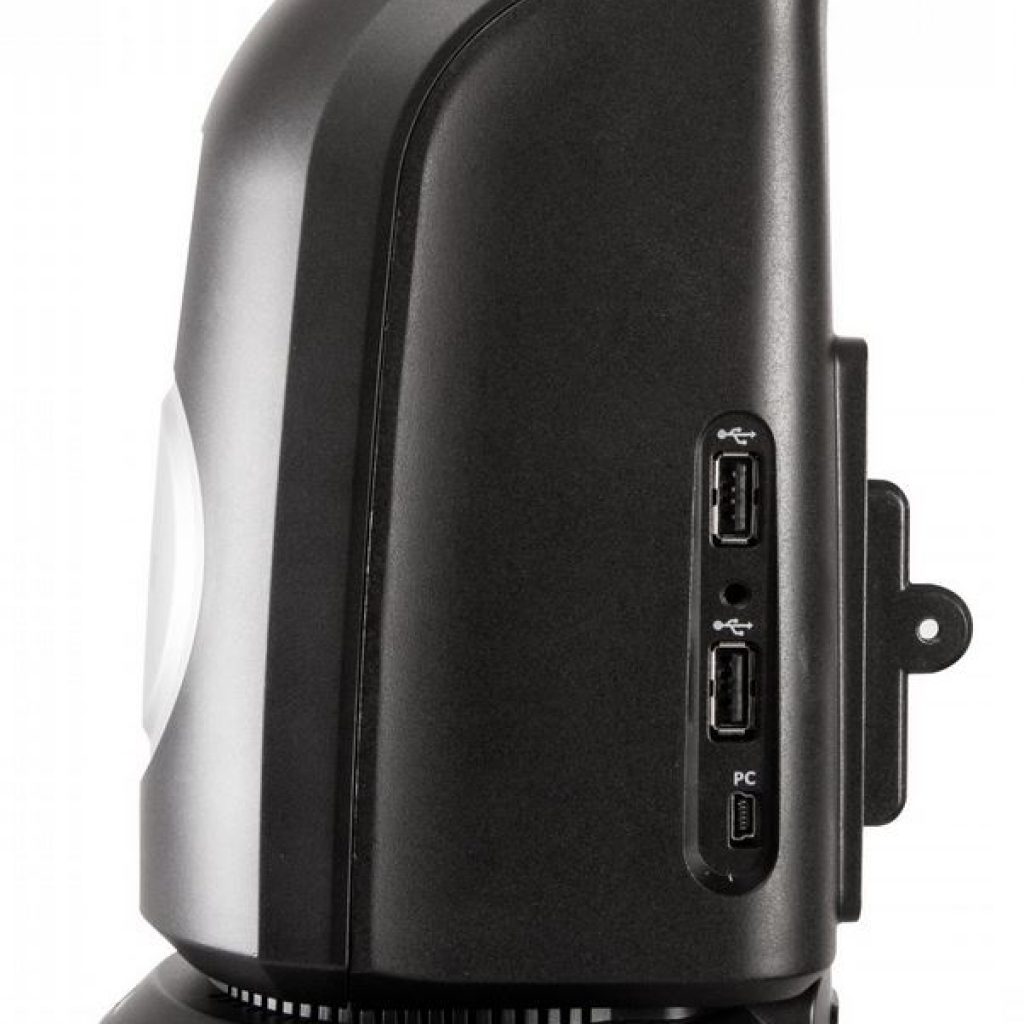

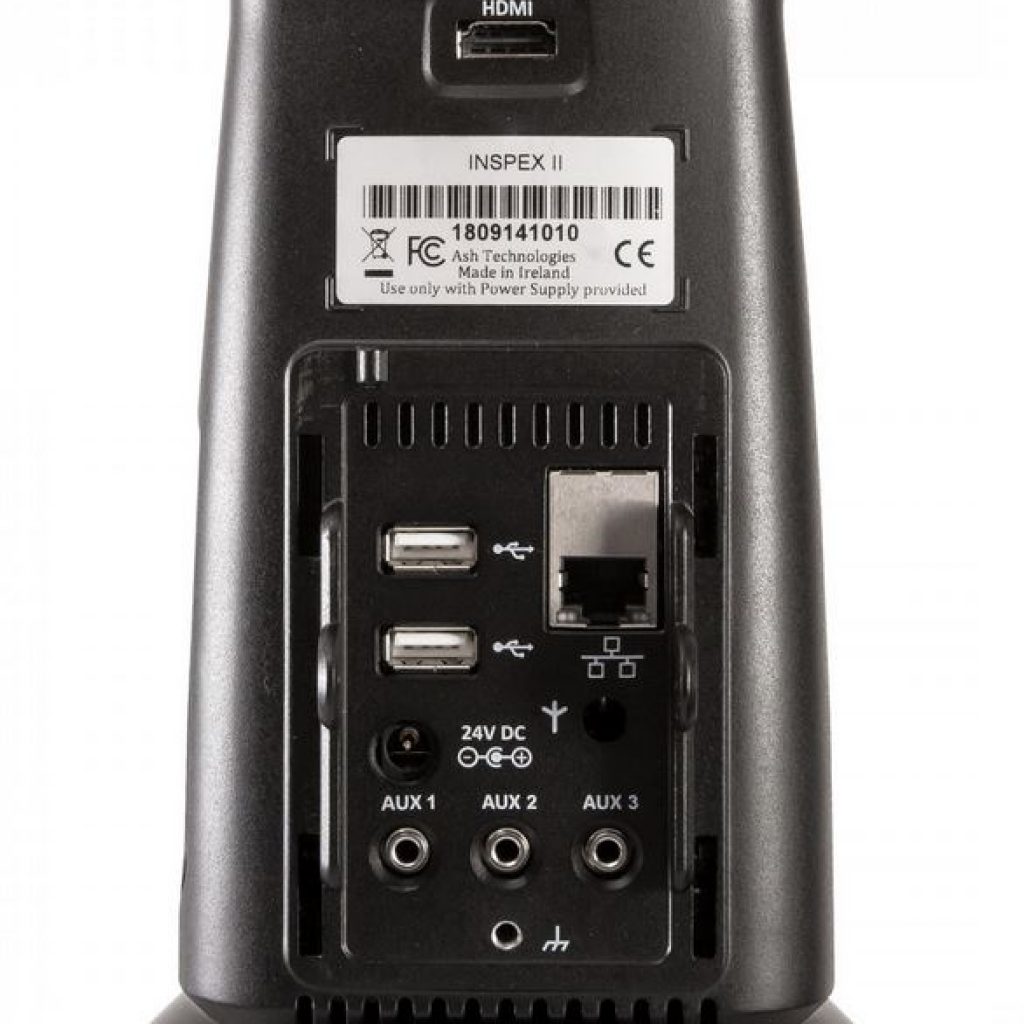

- HDMI output, four USB 2.0 ports, mini USB, three general purpose I/O ports, DC power jack
- Internal image storage, removable USB image storage, USB on the go (PC Connectivity)
- Integrated LED ring light with intensity and quadrant control; LED Lamp life approx. 40,000 hours
- Wireless keyboard and wireless mouse included
- HDMI-to-HDMI cable, mini USB cable and USB memory stick included
- Grounding cable included
- Optional objectives: +10D, +25D, 2x Plan, 0.3x , 1x Plan, 0.5x Plan APO, 0.5xwd

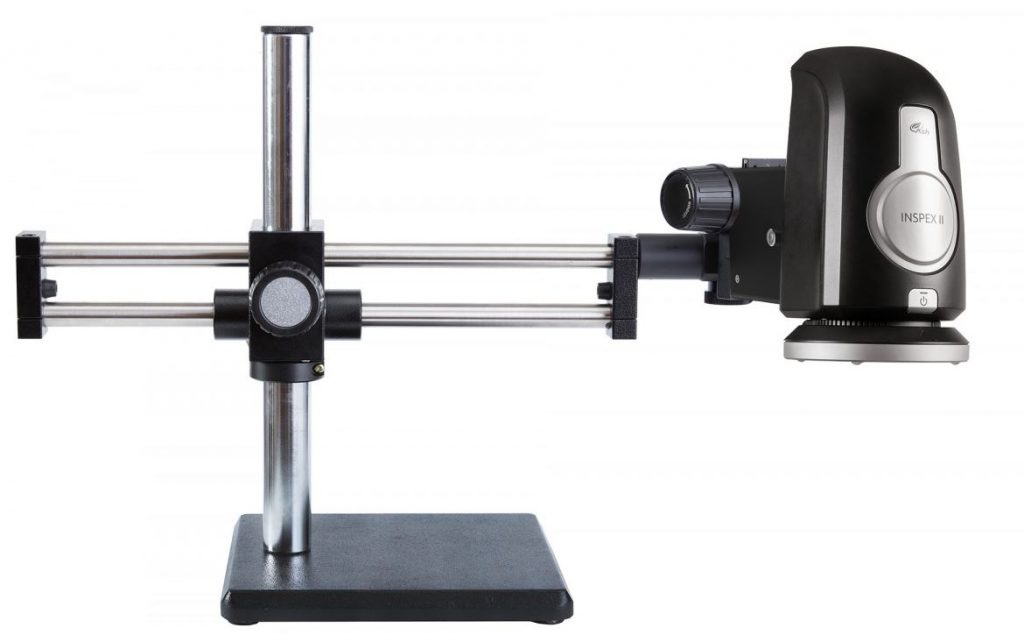

- REQUIRES STAND. Stand not included.
- REQUIRES MONITOR. Monitor not included.
- Shipping weight 7lbs.
Optional Accessories
LED ring lights, Digital Cameras, Fiber Optic Illuminators, Fluorescent Ring Illuminators, Auxiliary Objectives, Iris Diaphragm, Beam Splitter/Photo Port, Coaxial Illuminator, Polarizer/Analyzer, and a Fluorescence Attachment.
