Unitron CFM Bullet Comparison Forensic Microscope – Inexpensive alternative to the competition!

CFM Bullet Comparison Forensic Microscope

Engineered and built upon years of tradition, value and excellence, UNITRON returns to the field of Forensic Science with the introduction of its new CFM Bullet Comparison Microscope. With the design assistance of police organizations, forensic scientists and educators in the field of forensic science UNITRON’s CFM Microscope offers unparalleled value and performance for the inspection of ballistics, firearms and toolmark examinations.

Evidence can be observed simultaneously via the precision engineered comparison bridge that supports two sets of matched objective steps on a 5-step magnification changer. The CFM  is equipped with 22mm field of view eyepieces and produces erect, unreversed images that move in the same direction as the specimen for ease of use.

The CFM Comparison Forensic Microscope is an inexpensive alternative to the competition! It is used daily in crime labs and universities across the US and overseas. If you want to save money but not scrimp on quality consider the CFM.

Unitron Bullet Comparator cfm-ergo-on-table

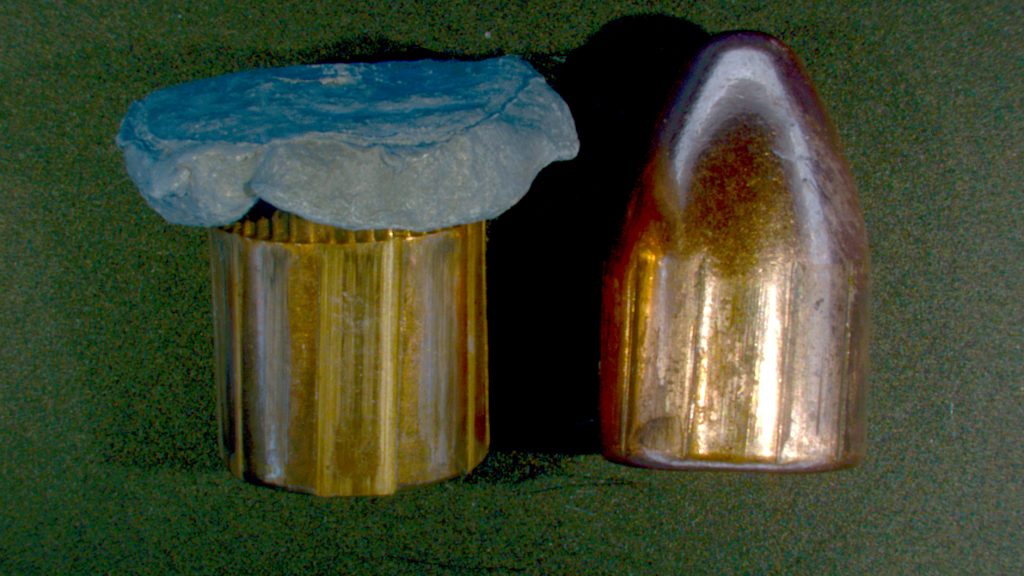

50-cal-bullet-cartridge
Unitron CFM Comparison Forensic Microscope

Standard Specifications

  • 5 matched magnification steps – 0.8x, 1.25x, 2x, 3.2x and 4.8x

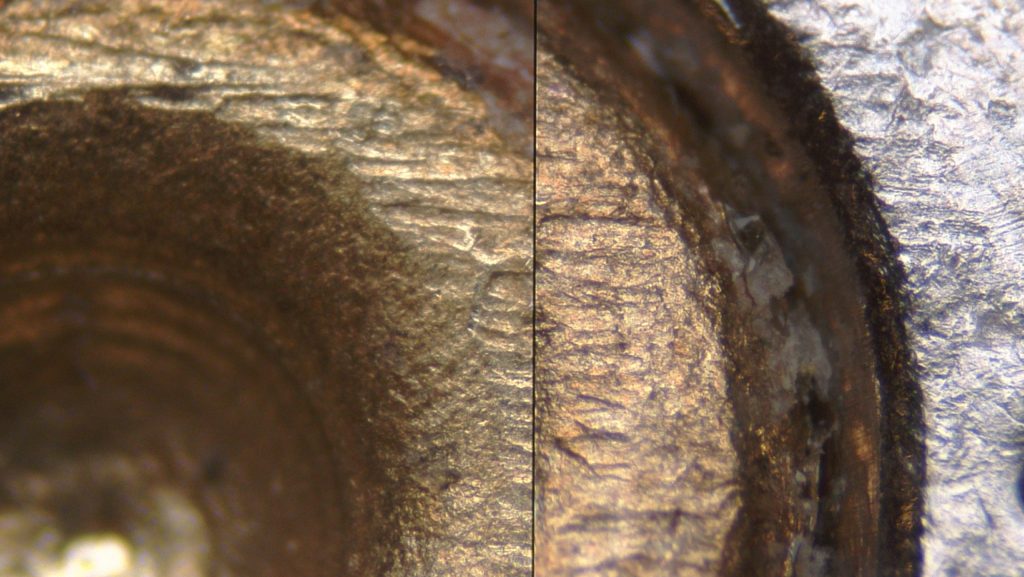

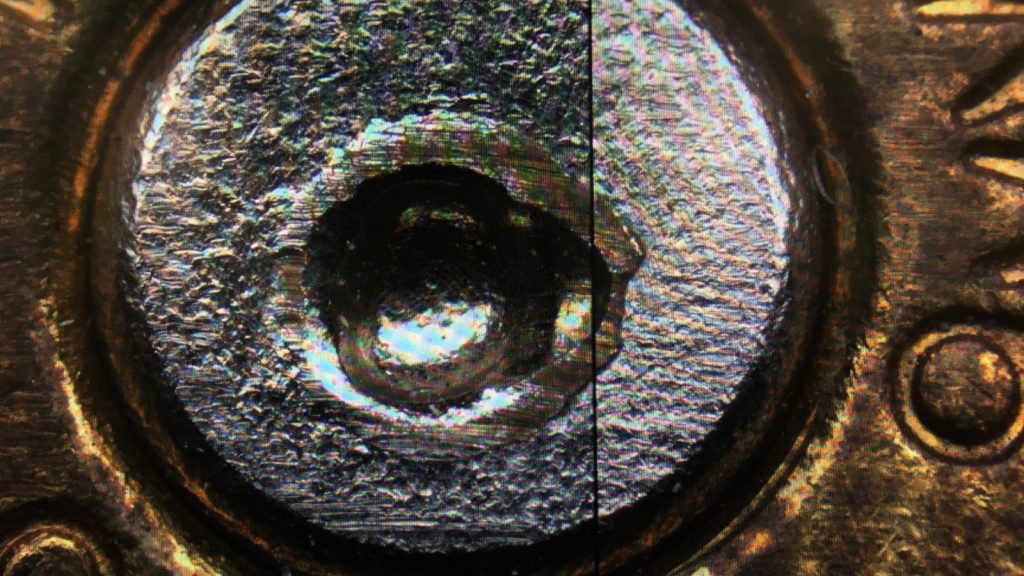

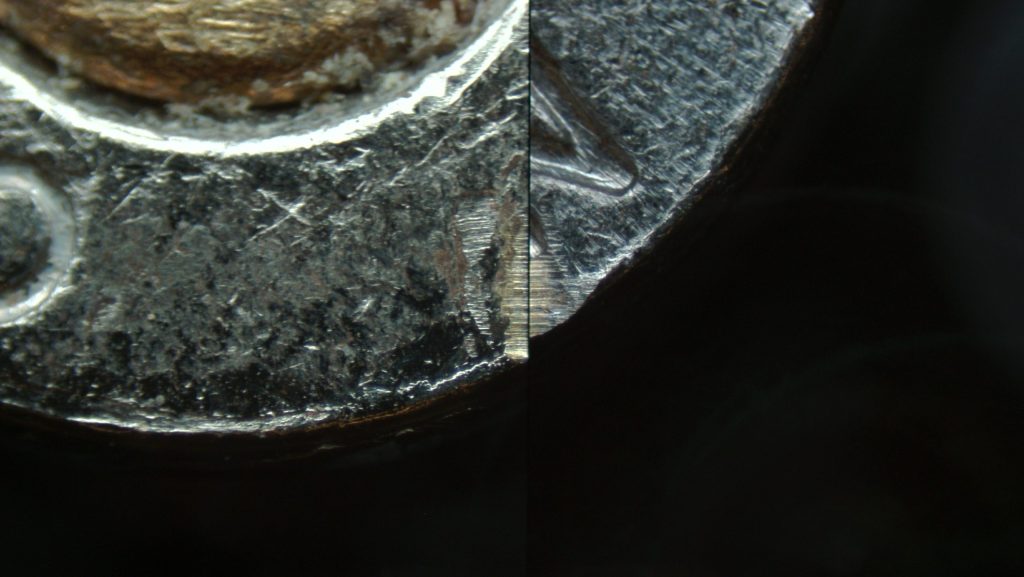

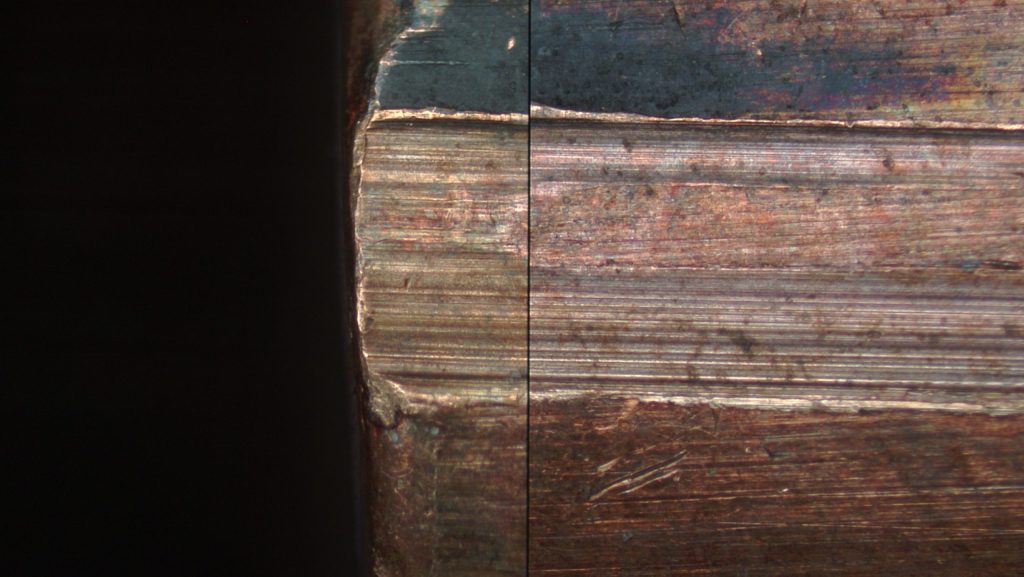

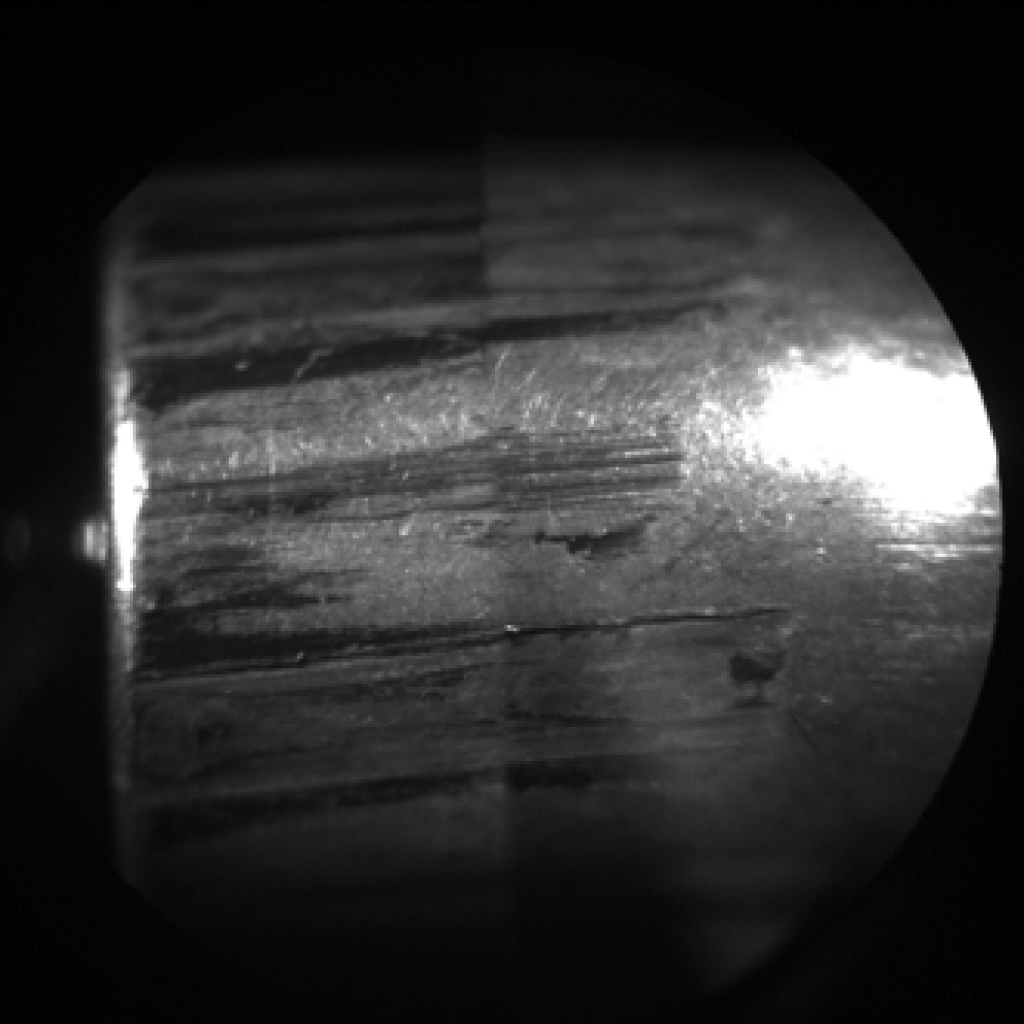

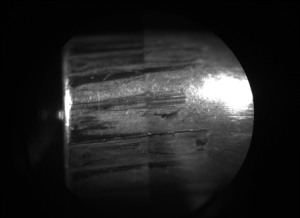

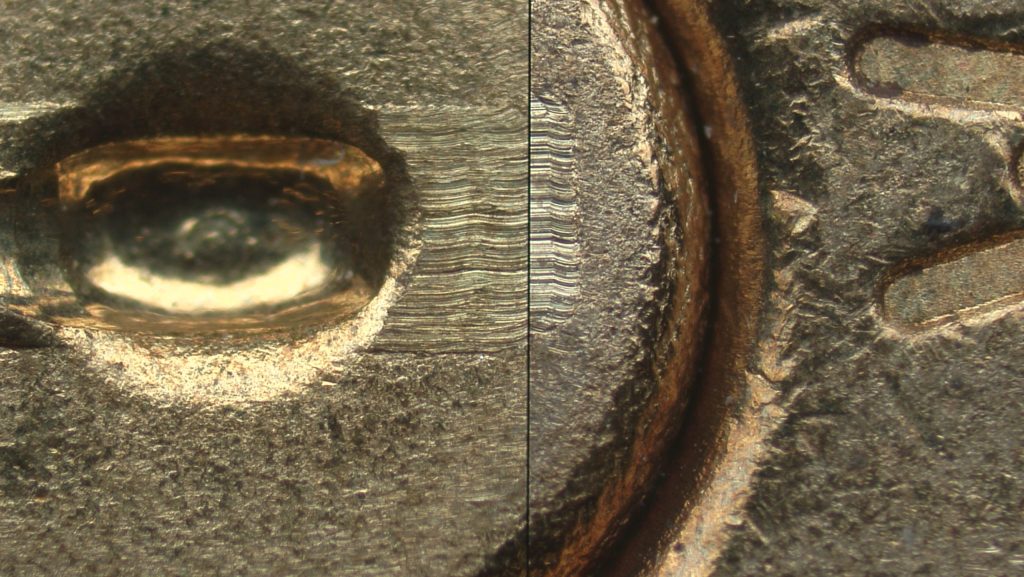

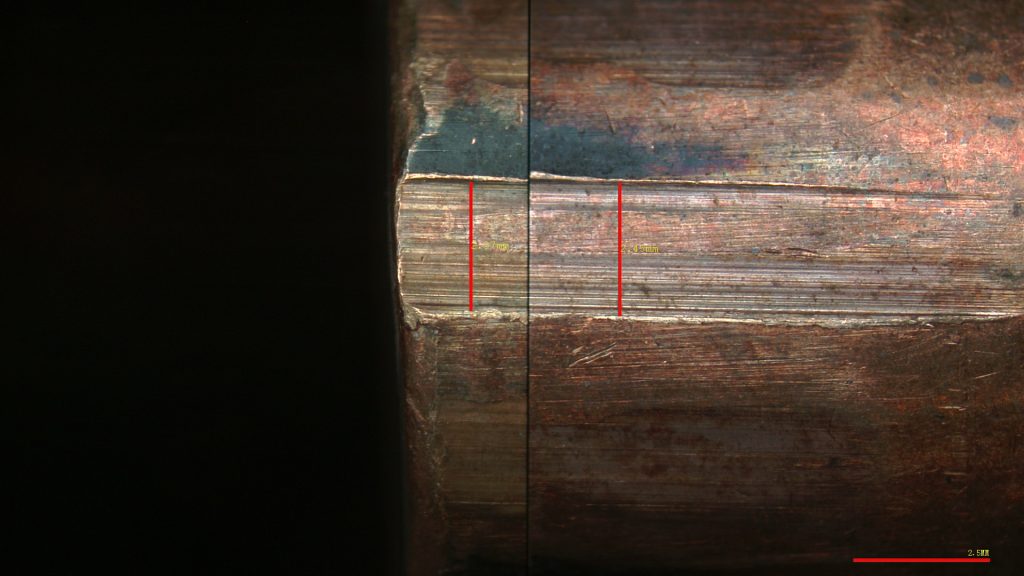

  • Images can be viewed as 100% right, 100% left, split or superimposed
  • The split image dividing line can be adjusted to any desired line width, offering maximum flexibility
  • Choice of ergo tilting head or standard 45° viewing angle head
  • CWF 10x eyepieces, 22mm field of view and CWF 20x eyepieces, 13mm field of view
  • Working distance – 95mm
  • Two 65mm diameter circular, ball bearing precision stages with horizontal coaxial stage controls
  • The stage movement ranges when moved independently are 56mm of X-axis, 56 mm of Y-axis and 56mm of Z-axis movement
  • Stage movement range when using the combined focus block is 80mm on the Z-axis movement
  • Universal bullet holder allows for the rotation and inclination of objects along a 90° vertical to horizontal positioning range on a 360° rotatable platform
  • Each stage has gradient adjustments in both directions
  • Circular LED Ring Light mounted to each optical system
  • Two LED flexible light guide with focusing lens
  • A wide range of stage mounting plates, wire holders, bullet and cartridge holders
  • Built-in touch pad to control all lighting options
  • Interpupillary distance adjustment range of 55 – 75mm

Optional Accessories

  • CWF 16x/16mm field of view, CWF 25x/13mm and CWF 30x/9mm eyepieces
  • Auxiliary objectives 0.4x and 2.0x
  • Digital & HD cameras
  • CCD Adapters – 0.4x and 1.0x
  • Photo tube
  • Transmitted light stage – 95mm diameter, with 3 watt LED transmitted light source to observe transparent or translucent objects
  • Coaxial LED illuminators
  • Daylight, UV, Green or Red LED circular attachable light guides
  • Polarizer
