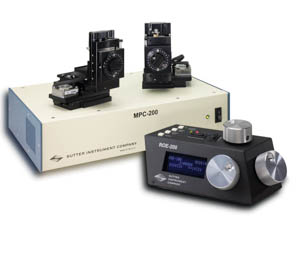

Sutter Instruments MPC-200/MPC-385/MPC-325

Multi-Micromanipulator Systems

Neurobiological experiments are becoming more complex. Many require multiple manipulators with control units that quickly become space and/or cost prohibitive. The Sutter MPC-200 is the solution you have been asking for. A single controller capable of running 2 manipulators! Sutter Instrument has taken the simplicity of the MP-225 controller and expanded it to run two manipulators from a single controller/ROE. The MPC-200 works with one or two of our world-renowned mechanicals, the Sutter MP-285 (MPC-385), the MP-225 (MPC-325) or the narrow format MP-265 (MPC-365).

If two manipulators aren’t enough, a second controller can be daisy chained to allow the single ROE-200 to move up to four manipulators. Thus the system can be easily expanded to control highly sophisticated experiments.

The Sutter MPC-200 is electrically quiet. Unlike the competition, our multi-unit controller employs linear output circuitry. Sutter adds additional manipulators to the same controller without requiring potentially noisy chopper drives.

Faster automated pipette exchange. The Sutter MPC-200 has faster “Home” and “Work Position” moves for quicker pipette exchange. Automation is set up and run via the same interface used in the Sutter MP-225 controller; however, the speeds of the automated movement are much faster.

Accelerated manual mode. For users who prefer manual pipette exchange we have added “Accelerated Mode” to the ROE. Using Accelerated Mode, the user can make quick manual moves in and out of a setup. Accelerated Mode amplifies the speed attainable in a manual move by smoothly accelerating to the maximum speed during sustained, fast turns of the ROE. Accelerated movement ends as soon as the user stops turning the knob. This mode can be fully disabled for those who feel the need for direct control of the pipette.

To provide the ultimate in flexibility, the Sutter MPC-200 can be purchased separately or as basic systems such as the Sutter MPC-385, MPC-365 and MPC-325. Additional component pieces can be added at any time, allowing the user to develop a system tailored to his or her particular needs. The controller is self-detecting so there is no need for manual configuration of the components.

Features

  • Single controller and ROE will run two stepper motor drive manipulators
  • Self-detecting, daisy-chain capability allows control of four manipulators from one ROE-200
  • User-friendly interface: single button access to all major functions
  • New Accelerated Mode for fast, manual manipulator movement
  • Easy toggle selection of Mode (speed/resolution, pulsed diagonal, Accelerated Mode)
  • Display indicates X, Y, Z coordinates, Mode, active manipulator
  • Robotic Home and Work Position moves for easy automated pipette exchange
  • Faster robotic moves than previous versions
  • Definable 4th axis for coaxial pipette movement, angle selected by DIP switches
  • Simple USB interface
  • Toggle switch selects which manipulator is connected to input device
  • LED and display indicate active manipulator
  • Low-drift mechanical stability
Sutter Instruments P-2000

Resolution and Full Travel
Minimal microstep size is 62.5 nanometers per microstep
Display has single micron resolution
Full travel is 25mm in each axis

Maximum Speed
MP-225 mechanical
3mm/sec
MP-285 mechanical
5mm/sec

DRIFT
Drive Mechanism
< 1 micron/hr

Dimensions
Controller
16in x11in x 3.5in | 41cm x 28cm x 9cm
ROE
10in x 6in x 4in | 25cm x 15cm x 23cm

Weight
Controller
6.5 lbs | 3 kg
ROE
3.5 lbs | 1.6 kg

Electrical
115/230 Volts
50/60 Hertz power line

RoHS Compliant
