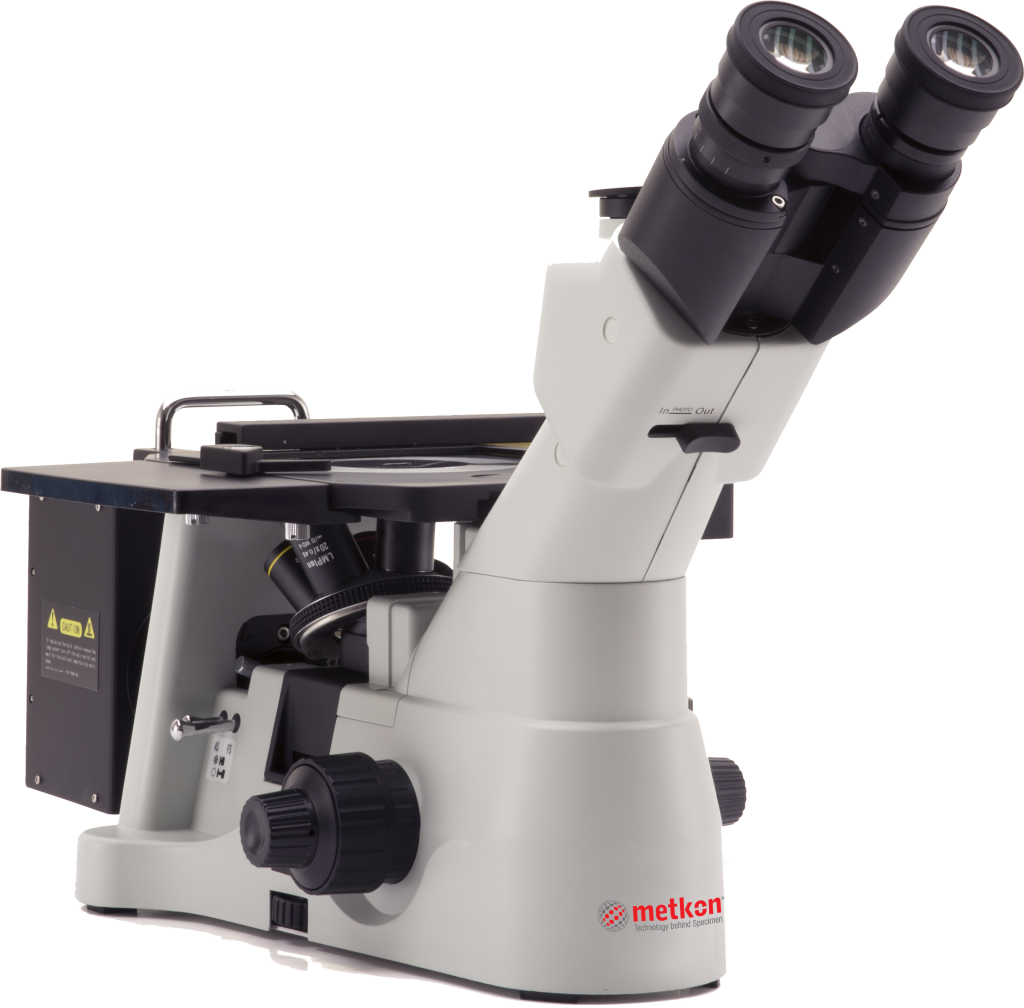

Metkon IMM 902 Inverted Microscope

Call (281) 579-0342 to see if a Metkon Microscope is a good match for you.

IMM 902 Inverted metallurgical microscope

Trinocular, Head 45° inclined.
Eyepieces: WF10x/22mm.
Nosepiece: 5-positions.
Objectives: 5x/0.15, 10x/0.3, 20x/0.45, 50x/0.55.
Focusing system: Coaxial coarse and fine.
Stage: 250x160mm; mechanical stage with lowered ergonomic coaxial controls.
X-Y range: 120x78mm.
Diaphragms: Field and aperture diaphragms (centerable).
Illumination: 12V/50W halogen bulb in external case.
Centerable bulb and brightness control.
Filters: Blue, polarizer & analyzer
Complete with dust cover

Accessories

60 25  Holder for metallurgical samples(15 mm hole)

60 45  Mechanical stage, IMM 902

62 42  Eyepiece WF15x/16mm

62 53  Eyepiece micrometer PL10x/22mm

60 41  26x76mm micrometric slide. R:1mm, div:0,01mm

60 55  Objective 100x/0,80 (dry)

60 74  Photo adapter for IMAGINE HARDWARE SET, 0,5x focusable

60 65  12V/50W halogen bulb
